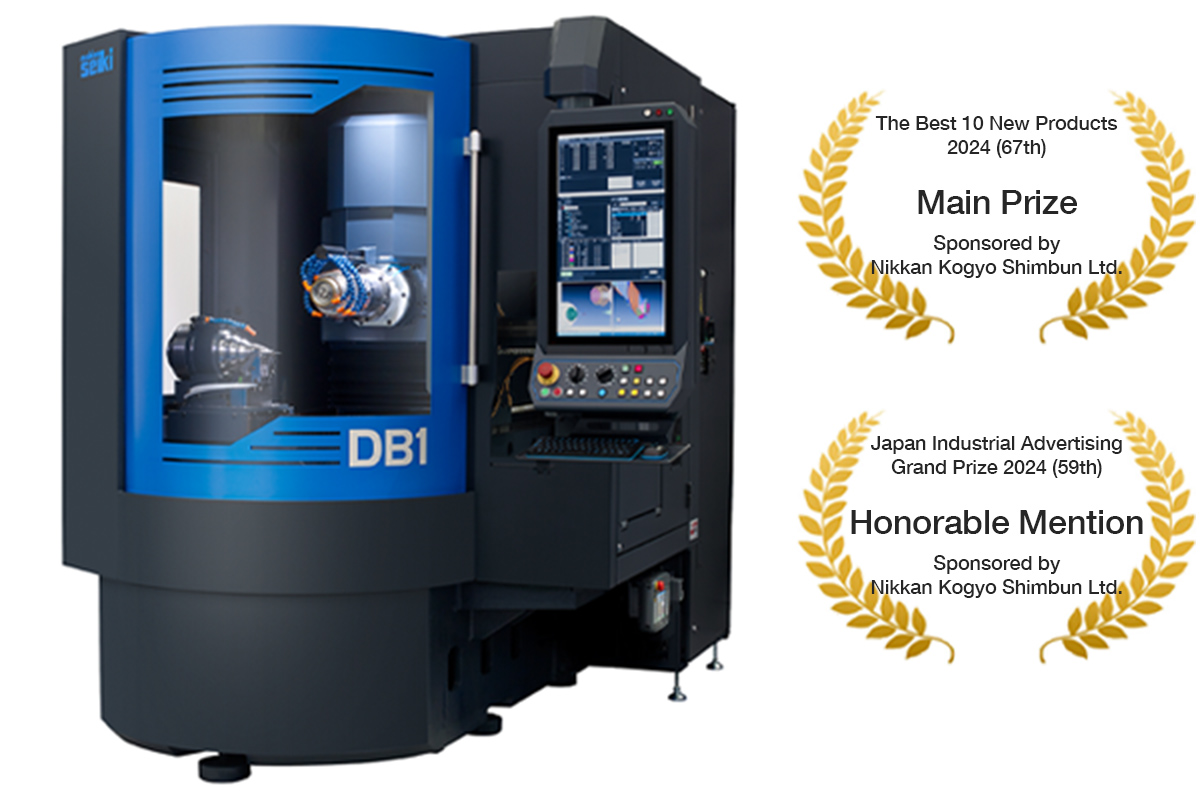

High-Precision CNC Micro Tool Grinder
GRIND micro tools
Next generation tool grinder with linear motor drive system specialized for micro tools
Features / Specifications
Superior grinding performance
Grinding spindle motor with 5.5kW output for wider range of tool diameters.
Tool diameter : φ0.03㎜～φ4㎜
Automation devices
Built-in automatic workpiece changer to support continuous machining for long hours unmanned operation. The drawer type pallet to facilitate workpiece changing work.
Superior visibility
Large window in machine front for easier operation status checking. Possible to check loader operation from the machine front.
Maximum Tool Size for Grinding
Overall tool length
max.100mm
Tool diameter
φ0.03㎜～max.φ4㎜
Grinding Spindle
Spindle nose taper
HSK-C50
Max. output power
5.5kW
Spindle speed
500～8000min-1
Work Head
Spindle nose taper
End face mounting, collet type
Spindle speed
400min-1
